Flink 任务执行流程源码解析

用户提交Flink任务时，通过先后调用transform()——>doTransform()——>addOperator()方法，将map、flatMap、filter、process等算子添加到List<Transformation<?>> transformations集合中。在执行execute()方法时，会使用StreamGraphGenerator的generate()方法构建流拓扑StreamGraph（即Pipeline），数据结构属于有向无环图。

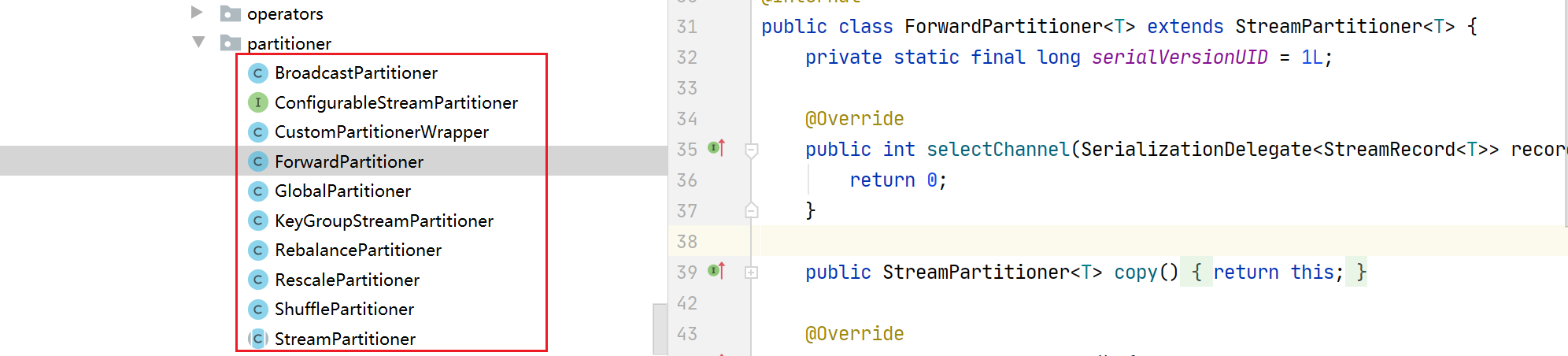

在StreamGraph中，StreamNode用于记录算子信息，而StreamEdge则用于记录数据交换方式，包括以下几种Partitioner：

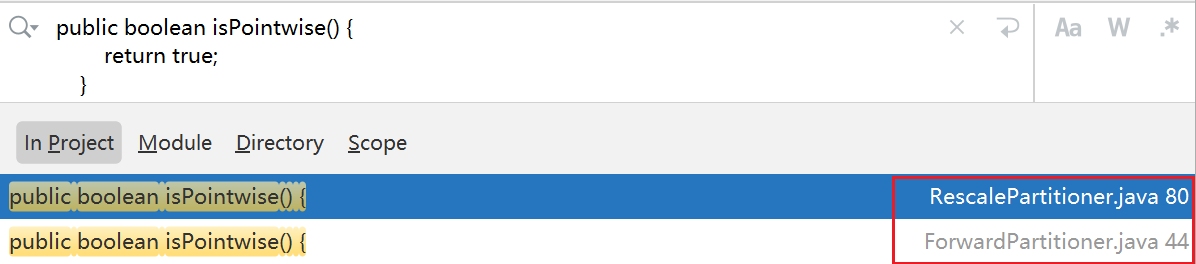

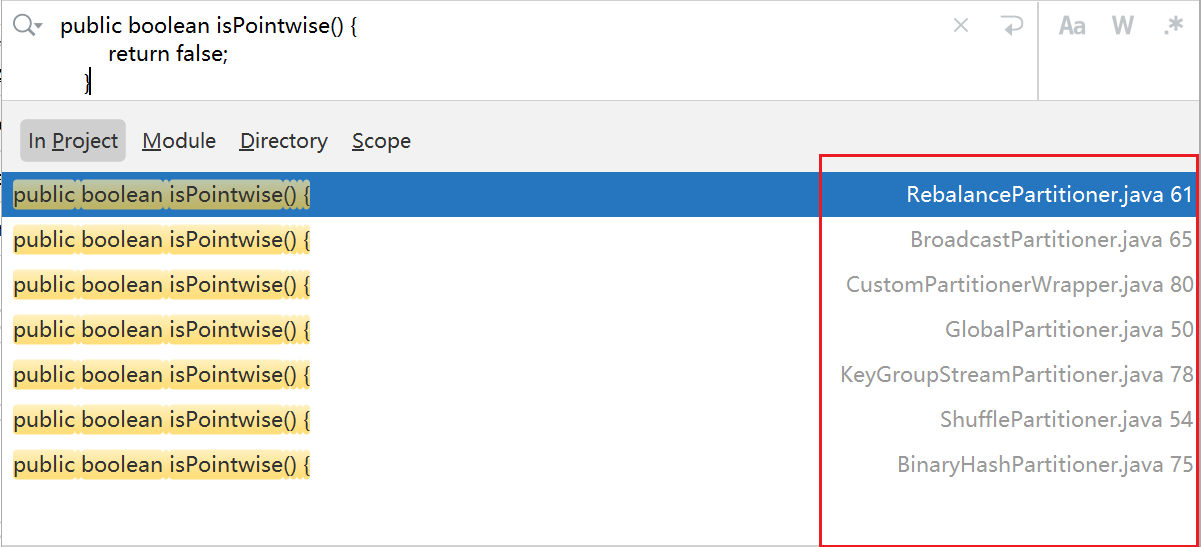

Partitioner类都是StreamPartitioner类的子类，它们通过实现isPointwise()方法来确定自身的类型。一种是ALL_TO_ALL，另一个种是POINTWISE。

/**
 * A distribution pattern determines, which sub tasks of a producing task are connected to which
 * consuming sub tasks.
 *
 * <p>It affects how {@link ExecutionVertex} and {@link IntermediateResultPartition} are connected
 * in {@link EdgeManagerBuildUtil}
 */
public enum DistributionPattern {

    /** Each producing sub task is connected to each sub task of the consuming task. */
    ALL_TO_ALL,

    /** Each producing sub task is connected to one or more subtask(s) of the consuming task. */
    POINTWISE
}

ALL_TO_ALL意味着上游的每个subtask需要与下游的每个subtask建立连接。

POINTWISE则是上游的每个subtask和下游的一个或多个subtask连接。

StreamGraph构建完成后，，会通过 PipelineExecutorUtils.getJobGraph()构建JobGraph，具体流程是：

——>PipelineExecutorUtils.getJobGraph()
——>FlinkPipelineTranslationUtil.getJobGraph()
——>StreamGraphTranslator.translateToJobGraph()
——>StreamGraph.getJobGraph()
——>StreamingJobGraphGenerator.createJobGraph()

JobGraph是优化后的StreamGraph，如果相连的算子支持chaining，合并到一个StreamNode，chaining在StreamingJobGraphGenerator的setChaining()方法中实现：

/**
 * Sets up task chains from the source {@link StreamNode} instances.
 *
 * <p>This will recursively create all {@link JobVertex} instances.
 */
    private void setChaining(Map<Integer, byte[]> hashes, List<Map<Integer, byte[]>> legacyHashes) {
    // we separate out the sources that run as inputs to another operator (chained inputs)
    // from the sources that needs to run as the main (head) operator.
    final Map<Integer, OperatorChainInfo> chainEntryPoints =
            buildChainedInputsAndGetHeadInputs(hashes, legacyHashes);
    final Collection<OperatorChainInfo> initialEntryPoints =
            chainEntryPoints.entrySet().stream()
                    .sorted(Comparator.comparing(Map.Entry::getKey))
                    .map(Map.Entry::getValue)
                    .collect(Collectors.toList());

    // iterate over a copy of the values, because this map gets concurrently modified
    for (OperatorChainInfo info : initialEntryPoints) {
        createChain(
                info.getStartNodeId(),
                1, // operators start at position 1 because 0 is for chained source inputs
                info,
                chainEntryPoints);
    }
}

将符合chaining条件的，合并到一个StreamNode

条件如下：

1. 下游节点输入边只有一个
2. 与下游属于同一个SlotSharingGroup
3. 数据分发策略Forward
4. 流数据交换模式不是批量模式
5. 上下游并行度相等
6. StreamGraph中chaining为true  streamGraph 是可以 chain的
7. 算子是否可以链化areOperatorsChainable

代码如下：

public static boolean isChainable(StreamEdge edge, StreamGraph streamGraph) {
    StreamNode downStreamVertex = streamGraph.getTargetVertex(edge);

    return downStreamVertex.getInEdges().size() == 1 && isChainableInput(edge, streamGraph);
}

private static boolean isChainableInput(StreamEdge edge, StreamGraph streamGraph) {
    StreamNode upStreamVertex = streamGraph.getSourceVertex(edge);
    StreamNode downStreamVertex = streamGraph.getTargetVertex(edge);

    if (!(upStreamVertex.isSameSlotSharingGroup(downStreamVertex)
            && areOperatorsChainable(upStreamVertex, downStreamVertex, streamGraph)
            && (edge.getPartitioner() instanceof ForwardPartitioner)
            && edge.getExchangeMode() != StreamExchangeMode.BATCH
            && upStreamVertex.getParallelism() == downStreamVertex.getParallelism()
            && streamGraph.isChainingEnabled())) {

        return false;
    }

... ...

从Source节点开始，使用深度优先搜索（DFS）算法递归遍历有向无环图中的所有StreamNode节点。

待续 ... ...
